The practical significance of the high stretch properties exhibited by premium Nylon 6 Sewing Thread and specialized bonded thread lies in their exceptional ability to absorb dynamic tension, prevent seam puckering, accommodate fabric elongation, and maintain long-term seam integrity under intense operational stress.
Understanding High Elongation and Elastic Recovery in Nylon 6 Sewing Thread
Tensile Strength and Performance Dynamics under Industrial Stress
The Role of Bonded Thread in Modern Industrial Sewing Operations
Practical Applications of High Stretch Threads across Major Industries
Comparative Analysis of Nylon 6 Sewing Thread versus Polyester Thread

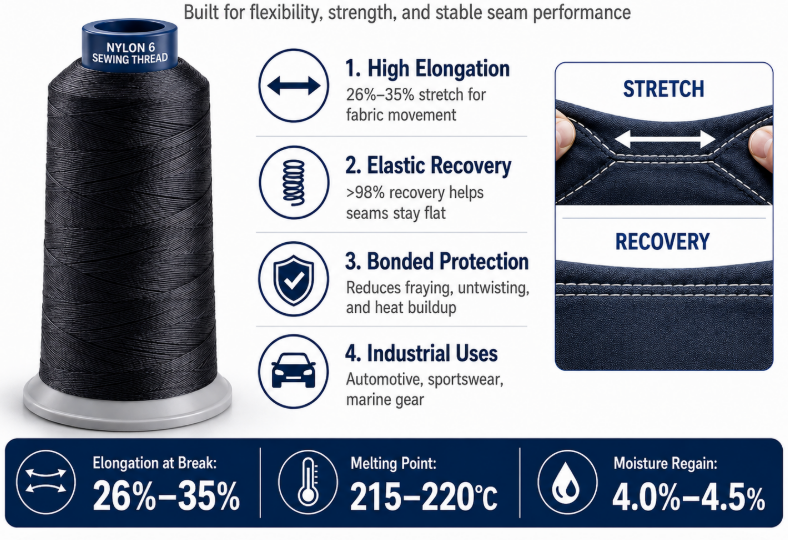

High elongation combined with superior elastic recovery allows Nylon 6 Sewing Thread to elongate under extreme loads and return immediately to its initial state without suffering permanent structural deformation.
In modern industrial fabrication, material flexibility dictates the ultimate quality and durability of the finished product. When mechanical stress is applied to flexible substrates, the assembly relies entirely on the dynamic compliance of the fastening elements. Utilizing a premium Nylon 6 Sewing Thread ensures that the structural seams adapt fluidly to multi-directional forces rather than resisting them rigidly, which typically triggers material tearing or immediate joint failure.
The fundamental molecular structure of polyamide polymers grants these synthetic fibers an inherent elasticity that surpasses traditional organic and polyester equivalents. Under high tension, the long-chain molecular polymers uncoil smoothly, distributing stress evenly across the length of the seam. Once the external mechanical load is removed, the inner polymer chains quickly recoil, pulling the seam back to its original orientation without causing structural damage or permanent elongation.
This structural resilience directly minimizes the occurrence of common manufacturing defects such as seam puckering and tension structural imbalances. When sewing elastic fabrics or dense synthetic materials, conventional rigid options fail to adapt during high-speed machine feeding cycles, leaving uneven loops or overly tight stitches. By integrating high-quality Nylon 6 Sewing Thread into the production assembly, engineers achieve consistent stitch uniformity across diverse operational speeds, optimizing overall plant performance and reducing rework costs.
Technical Parameter | Specification Range | Practical Benefit |
Elongation at Break (%) | 26% – 35% | Accommodates extreme fabric stretching without structural failure. |
Elastic Recovery Rate (%) | > 98% under moderate load | Ensures seams return to their original form, preventing sagging. |
Moisture Regain (%) | 4.0% – 4.5% | Maintains structural flexibility under variable ambient humidity. |
Melting Point (°C) | 215°C – 220°C | Resists heat generation during intensive high-speed processing. |
The robust tensile strength of Nylon 6 Sewing Thread provides the precise structural resistance needed to withstand rapid acceleration and decelerations in automatic machinery.
Tensile integrity under dynamic conditions defines the true reliability of industrial textiles. During automated stitching routines, the thread experiences extreme cyclical loading as the needle penetrates multi-layered assemblies at thousands of revolutions per minute. A failure to absorb these sudden spikes in energy leads to immediate machine downtime, broken stitches, and compromised structural performance across production lines.
The mechanical toughness of Nylon 6 Sewing Thread stems from its specialized alignment of polymer crystals achieved during the advanced draw-twisting manufacturing phase. This precise structural alignment allows the fiber to endure substantial impact forces without snapping. The high stretch characteristic serves as a critical built-in shock absorption mechanism, dissipating instantaneous peak forces along the length of the fiber filament structure.
Furthermore, this tensile capability protects the finished product throughout its operational life cycle. Items subjected to persistent vibrational wear, heavy loads, or continuous inflation rely on the microstructural stability of the assembly. The strategic application of resilient yarn elements ensures that structural joints retain their load-bearing capacity even after millions of load cycles, guaranteeing the safety and longevity of complex industrial systems.
Thread Size Designation | Average Break Strength (kg) | Recommended Needle Size (Metric) |
Tex 70 (V-69) | 4.8 – 5.4 kg | 100 – 110 |
Tex 90 (V-92) | 6.5 – 7.2 kg | 110 – 125 |
Tex 135 (V-138) | 9.6 – 10.5 kg | 125 – 140 |
Tex 210 (V-207) | 14.2 – 15.8 kg | 140 – 160 |
Applying a protective bonding agent over nylon filaments creates a uniform bonded thread that effectively eliminates ply untwisting, ply separation, and frictional shredding in multi-directional automated systems.
High-speed industrial processes subject the stitching material to severe frictional forces as it travels through complex tension guides, regulators, and large needle eyes. Unprotected fibers often split or fray under these intense physical interactions, leading to sudden thread failure or skipped stitches. Bonded thread solves this vulnerability by completely encasing the twisted synthetic core in a high-performance chemical coating that locks individual filaments in place.
This specialized coating forms a highly polished, protective shield that dramatically minimizes friction coefficient values. As the needle pierces through dense, multilayered materials such as leather or heavy canvas, the smooth coating facilitates seamless penetration, substantially lowering localized heat generation. This cooling effect protects the inner polymer filaments from structural weakening or localized melting, ensuring steady output quality during continuous manufacturing shifts.
Moreover, the structural stability provided by high-grade bonded thread ensures perfect loop formation behind the needle eye. This clean loop is essential for proper hook capture during stitch formation, particularly in complex multi-directional patterns or reverse-feed operations. By eliminating filament separation, the material ensures uninterrupted cycle times, enabling manufacturing facilities to optimize throughput while maintaining strict quality metrics.
Component Part | Material Composition | Functional Contribution |
Core Filament Yarn | High-Tenacity Polyamide 6 | Provides foundational tensile strength and high elasticity. |
Bonding Solution | Polyurethane / Liquid Nylon Solution | Cohesively encapsulates plies to prevent internal friction and unraveling. |
Lubricant Coating | Premium Silicone Compound | Reduces friction against needle guides and dissipation of heat. |
Working Principle of Chemical Bonding: The chemical bonding process forces a liquid nylon or polyurethane solution deep into the core structure of the twisted yarn. Upon thermal curing, this compound solidifies into an external protective matrix that cross-links the filaments. This matrix restricts lateral displacement under tension while preserving longitudinal elasticity, allowing the thread to bend and flex through complex paths without experiencing structural splitting or surface peeling.
The unique high stretch and elasticity properties of nylon and bonded threads make them indispensable for manufacturing high-demand products like automotive safety systems, specialized sportswear, and deep-sea industrial gear.
In the automotive sector, structural seams must satisfy stringent safety and longevity criteria. Components like airbag modules, steering wheel covers, and seating systems undergo rapid spatial displacement and high pressure during deployment or prolonged usage. Utilizing high stretch polyamide thread allows these vital seams to yield exactly as engineered, ensuring predictable performance without premature tearing.
In the heavy industrial and geographic engineering sectors, fabrics are continuously exposed to shifting physical loads and harsh environmental conditions. Infrastructure filtration units, safety harnesses, and storage enclosures stitched with flexible nylon lines adapt easily to ground shifting or fluid pressure fluctuations. This microstructural adaptability avoids point-source stress accumulation, distributing environmental loads evenly across the entire fabric layout.
Automotive Interiors: Seat assemblies and safety restraint components utilize high stretch bonded thread to handle repetitive passenger loading cycles without breaking.
Protective Sportswear: Elastic athletic wear and scuba diving suits depend on flexible stitching lines to maintain water-resistant seals during intensive movement.
Cargo Handling Equipment: Heavy duty lifting slings and tie-down straps use thick nylon stitching to safely manage heavy weight distributions and heavy impacts.
Industrial Sector | Primary Material Joined | Critical Performance Requirement |
Automotive Safety | Synthetic Leather & Canvas | Dynamic energy dissipation and high thermal tolerance. |
Marine Equipment | Heavy Neoprene & Vinyl | Saltwater resistance combined with deep seam flexibility. |
Aerospace Safety | High-Density Webbing Materials | Extreme strength-to-weight ratio and consistent shock dampening. |
A comprehensive engineering comparison demonstrates that Nylon 6 Sewing Thread offers significantly higher elongation and superior impact resistance than polyester alternatives, making it the ideal choice for dynamic assemblies.
While polyester is recognized for its resistance to ultraviolet radiation and minimal moisture retention, it remains relatively rigid when exposed to sudden mechanical loads. In applications where assemblies encounter continuous expansion or abrupt mechanical jars, rigid stitching material acts as a shear point, cutting directly through fabric layers. Nylon 6 filaments mitigate this risk by yielding up to one-third of their length before reaching failure thresholds.
From a wear-resistance standpoint, nylon molecules possess a smoother surface geometry and higher molecular density than polyester. This characteristic translates to excellent abrasion tolerance during operational cycles. When heavy-duty canvas or leather products slide against coarse surfaces, the structural integrity of the nylon stitching remains intact, whereas polyester lines often degrade and fray quickly from surface friction.
Additionally, the superior shock-dampening capabilities of nylon elements are crucial for items subjected to sudden drops or rapid tensioning. The ability to transform mechanical kinetic energy into safe internal elongation protects the entire structural matrix, ensuring that load-bearing joints survive extreme stress events intact.
Performance Metric | Nylon 6 Sewing Thread | Polyester Sewing Thread |
Elastic Limit Elongation | High (26% – 35%) | Low to Moderate (15% – 20%) |
Abrasion Resistance Index | Excellent (Optimal for heavy friction) | Moderate (Prone to surface fraying) |
Impact Energy Absorption | Superior Shock Dissipation | Standard Rigid Load Bearing |
Seam Elasticity Retention | Maintains memory over long use | Prone to minor permanent deformation |
In summary, the practical integration of high stretch Nylon 6 Sewing Thread and specialized bonded thread represents a foundational engineering choice for modern technical manufacturing. By providing a perfect balance of high elongation, high tensile strength, and excellent friction resistance, these advanced materials ensure that seams maintain their structural integrity under the most demanding conditions. For industrial facilities aiming to improve product durability, optimize manufacturing speeds, and eliminate operational downtime, selecting high-performance polyamide threads is an essential strategy for long-term commercial success.
